Products Description
Hydraulic wall saw also called track sawing, It is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other build.
Features
Solid design and construction
Flush and angle cutting capability
Flush and angle cutting capability
Saw comes standard and complete tool kit
Maximum flow: 100L/min
Maximum Pressure: 210bar
Tags: wall saw hydraulic wall saw.hydraulic track saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Hydraulic wall saw HWS-700TM
HWS-700TM wall saw is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other building materials, up to 730mm thickness. It can be used for all kinds of openings and sawing including stair, bevel and flush cutting.
Technical data

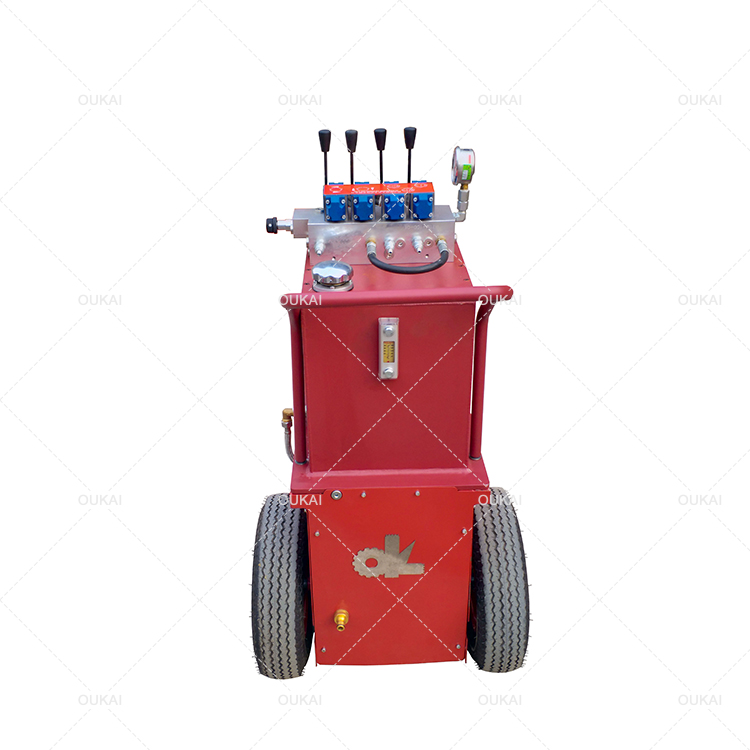

HWS-700TM hydraulic power unit | |
Max. output power | 30kW |
Electric motor | Water cooled |
Voltage | 380V-440V 50Hz/60Hz |
IP protection code | IP65 |
Pressure stages | 3 |
Max.operating pressure | 210bar |
Oil flow rate | 40-100l/min. |
Dimensions(L*B*H) | 500mm*520mm*1100mm |
Weight | 118kg |

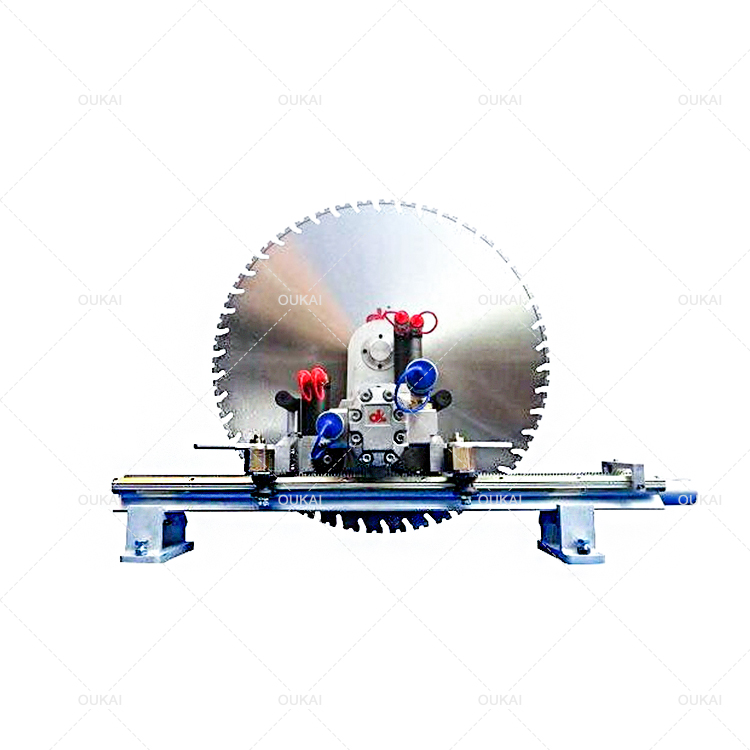

OK-700TM wall saw head | |
Saw blade diameter-range | 800-1600mm |
Cutting depth | 730mm |
Max.oil flow rate | 100l/min |
Max.operating pressure | 210bar |
Gearing | gear |
Rotation speed(with 700TM unit) | 600/850/1400rpm |
Dimensions (L*B*H) | 400mm*420mm*400mm |
Weight | 39kg |
