Products Description

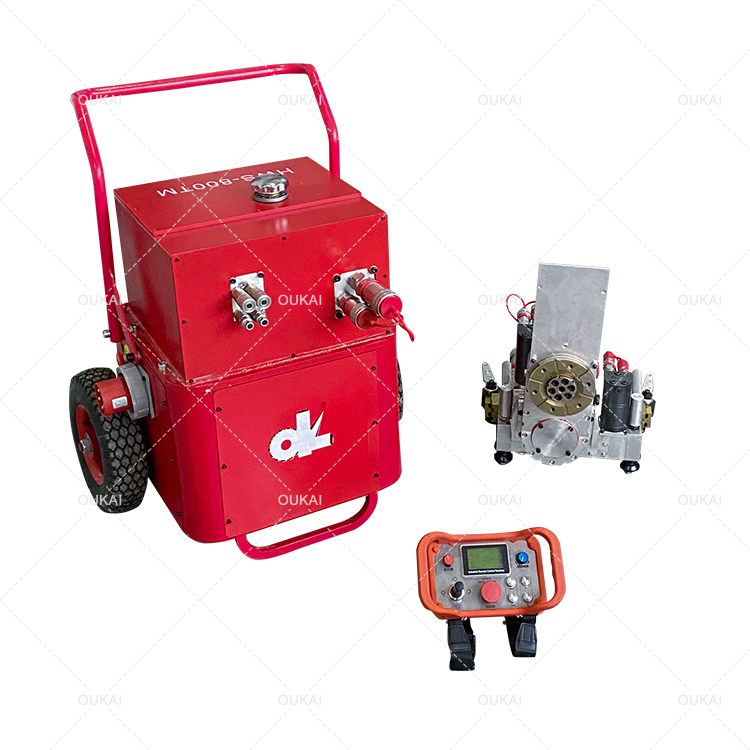

Hydraulic Wall Saw HWS-800TM
HWS-800TM hydraulic wall saw can be used with remote controls to help keep operators at a safe distance
Cutting depths up to 730mm (wireless control)
Product / User Benefits:
Popular, well-tried and outstanding reliability and cutting accuracy.
Easy transport and simple installation thanks to well-honed design.
Different blade diameters can be used, max. 1,600mm
Super power 32 kW (cooling water motor) output. but it weighs only 118kg.
Tags: wall saw hydraulic wall saw track saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric

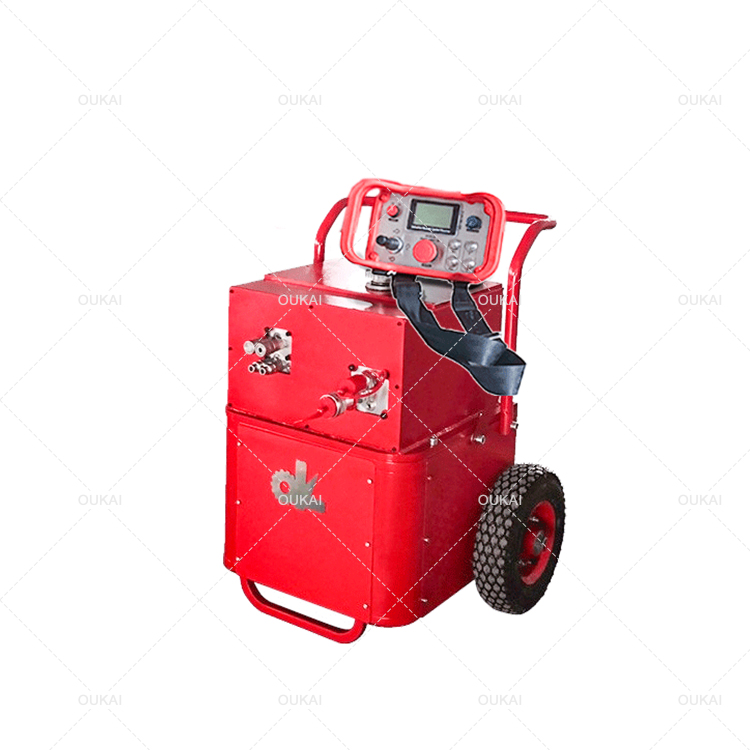

Hydraulic power unit HWS-800TM
Motor Max. power 32 kW
Voltage -range 380V~480V 50Hz/60Hz
Hydraulic oil flow rate - range 40~100l/min
Hydraulic pressure.max 220bar
Pressure stages 3
Min. generator power 60 kVA
Min. cooling water supply rate 5 l/min
Weight 118kg
Saw head OK-800TM
Arbor diameter 60mm
Blade diameter.max 1600mm
Cutting depth.max 730mm
Starter blade diameter.max 800mm
Weight 38kg
Remote control(wireless)
Control voltage 24V(DC)
Weight 2kg
