HF-103DM High Frequency Electric Wire Saw
With over 20 years of experience in developing, designing and producing high-quality sawing machines.

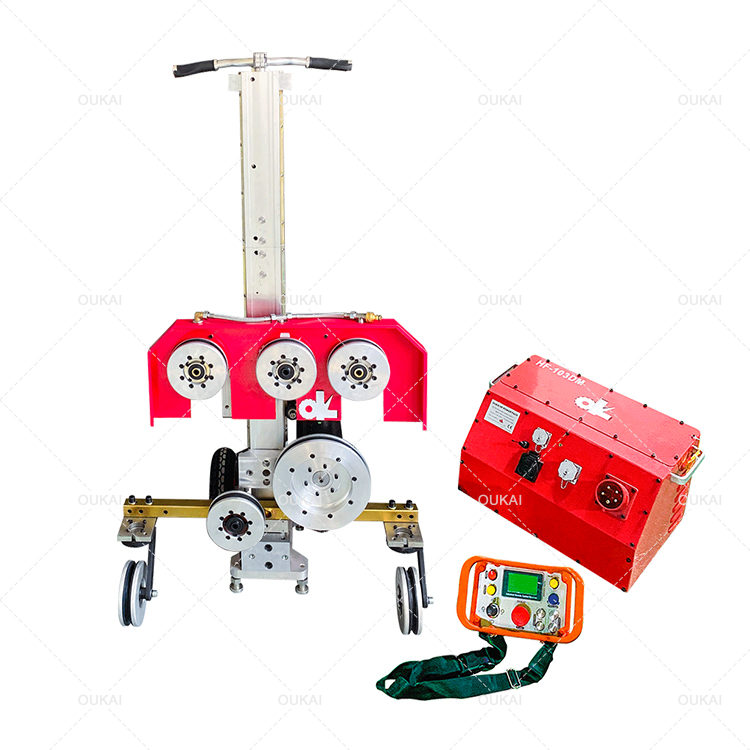

HF-103DM High Frequency Electric Wire Saw
Features
Wireless Remote Control
High frequency power and user-friendly
Light-weight modular component design makes set-up quick and easy
The HF-103DM Wire Saw operates can use the same power pack, HF motor, cables, and remote control as OK Wall Saw systems.
The electric, automatic feed, and high-torque high-frequency motor simplify the start of the wire while extending its life.
Tags: HF wire saw Electric wire saw high frequency wire saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Wire
Wire storage 10m
Wire Φ, sintered 11.5mm
Wire Φ, brazed 10.5mm
Design
Drive wheel : Φ280mm
Guide pulleys: Φ168mm
Feed wire storage： Electric
Electric motor
Water-cooled high-frequency motor
Output 32A 17kW 19kg
Output 16A 9kW 15kg
Other power can be customized (eg.30kW)
Control
Voltage 380~420V (Single-phase is available)
Frequency 50Hz/60Hz
Weight 18kg
Wireless control 1.5kg
Dimensions & weight
Height 1100 /1600mm
Width 900mm
Depth 550mm
Weight 85kg
Weight excl. main motor 60kg
(Main motor can be disassembled and mounted
quickly and easily)
