Products Description
Wire Saw Machine Manufacturer

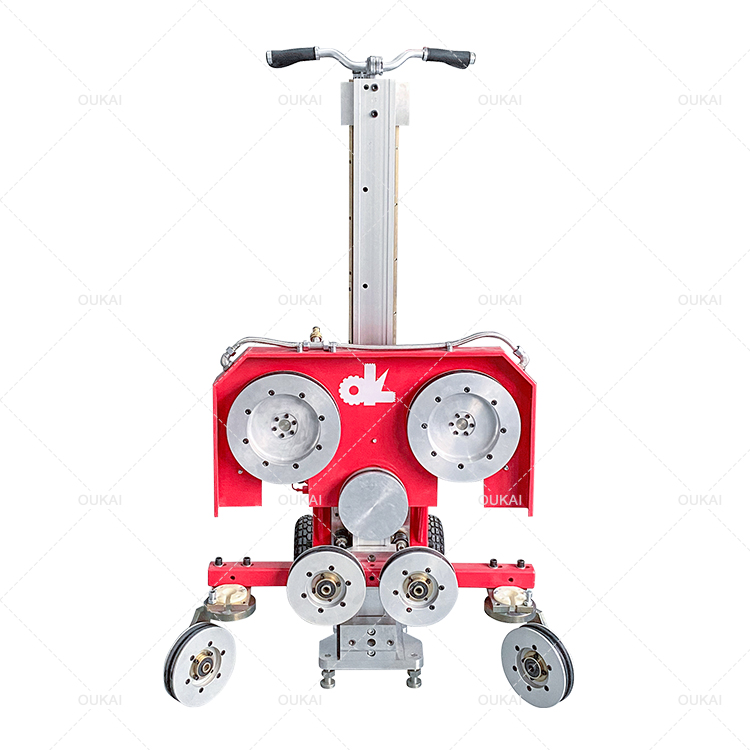

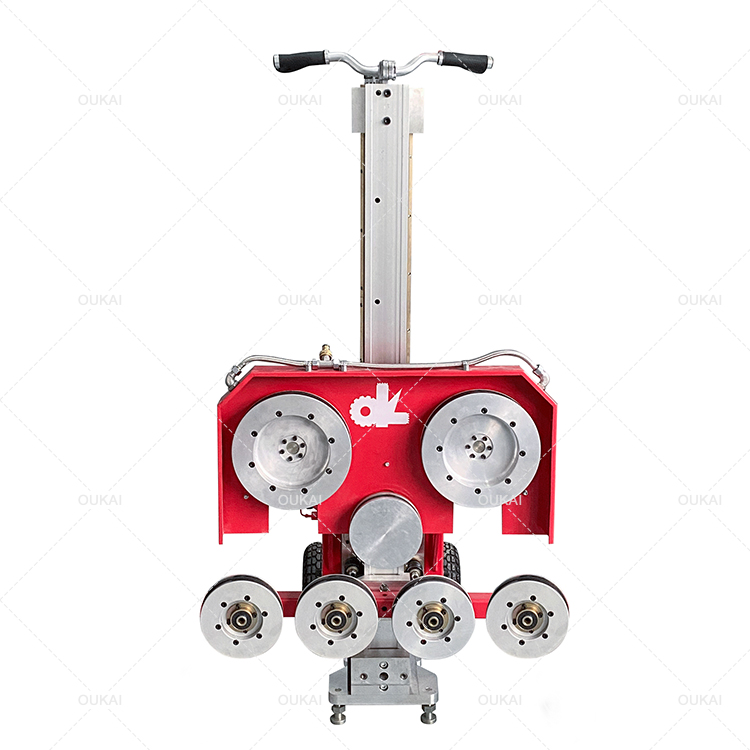

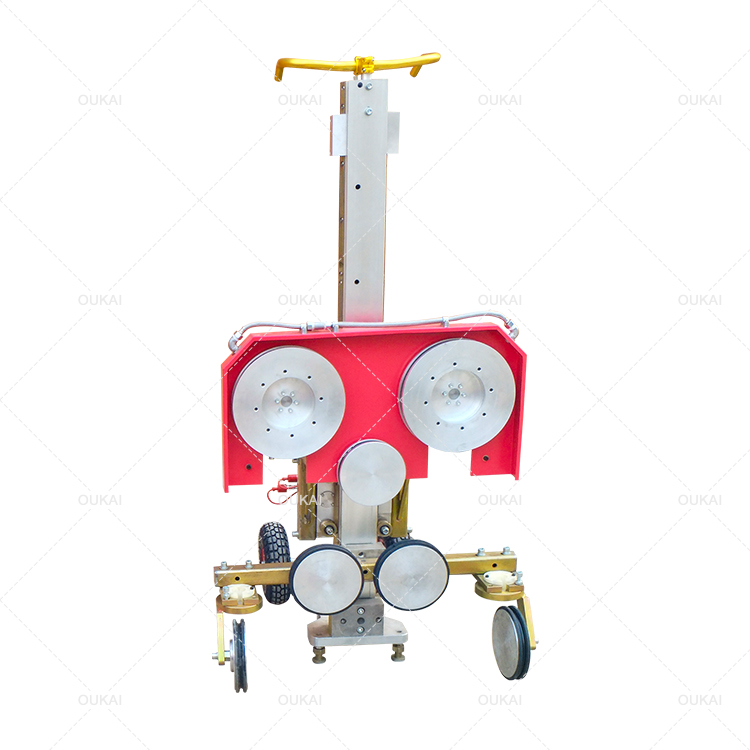

SQ-90AM wire saw machine in combination with the hydraulic power unit 700TM ,600TM or 800TM, it is designed to cut and remove super thick and heavy reinforced concrete and irregular concrete such as bridge cap beam,box beam and support beam,pier,foundation,underwater concrete,etc.
Product/User Benefits:
l Faster, safer and simpler wire saws
l Extremely large wire storage and long travel to give the greatest possible application and use
l Dual drive motor,automatic tension rope
l Maximum size of unit up to 12 m
l Fine feed for application control using innovative damping system
l Wire saw for direct assembly
l Patented drive roll system
Winding method
Tags:
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Technical details
SQ-90AM wire saw system | ||
Max. wire storage | m | 12 |
Total travel | mm | 1500 |
Width | mm | 1050 |
Depth | mm | 700 |
Height | mm | 2100/1650 |
Length of protective cover | mm | 1650/1100 |
Drive wheel | mm | 280 |
Storage wheel | mm | 200 |
Total weight | kg | 110(easy to disassemble and assemble) |
Hydraulic power unit 600TM | 25 kW, 380V,50HZ, 200 bar, 30-80/min, 180kg | |
Hydraulic power unit 700TM | 30 kW, 380V-480V,50/60Hz,210bar,40-100 l/min, 120kg | |
