Products Description

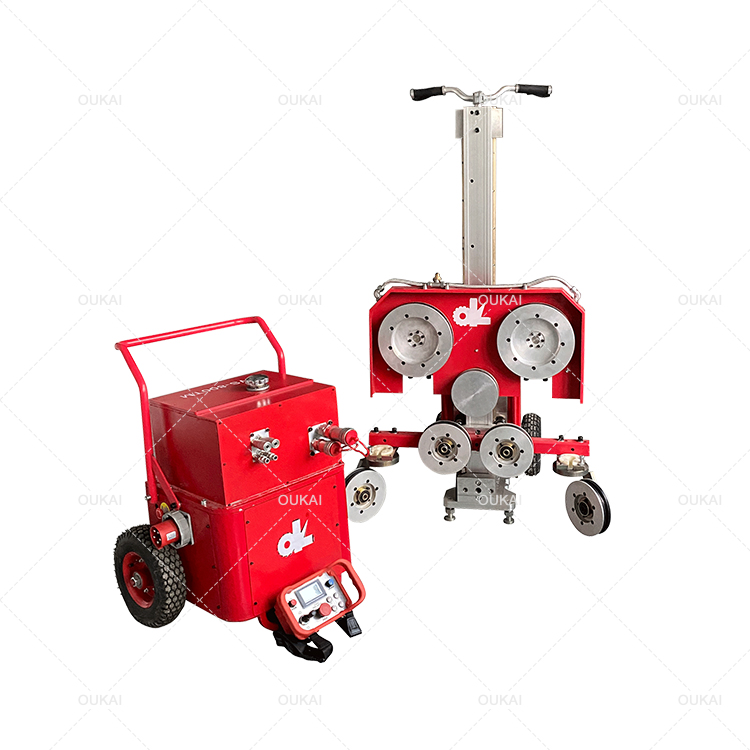

Hydraulic Wire Saw Machine
SQ-90AM wire saw machine in combination with the hydraulic power unit 700TM ,600TM or 800TM, it is designed to cut and remove super thick and heavy reinforced concrete and irregular concrete such as bridge cap beam,box beam and support beam,pier,foundation,underwater concrete,etc.
Features
Faster, safer and simpler wire saws
Extremely large wire storage and long travel to give the greatest possible application and use
Dual drive motor,automatic tension rope
Maximum size of unit up to 12 m
Fine feed for application control using innovative damping system
Wire saw for direct assembly
Multiple pulley drive for easy, smooth starting
Tags: Hydraulic wire saw wire saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Technical details
SQ-90AM wire saw system | ||
Max. wire storage | m | 12 |
Total travel | mm | 1500 |
Width | mm | 1050 |
Depth | mm | 700 |
Height | mm | 2100/1650 |
Length of protective cover | mm | 1650/1100 |
Drive wheel | mm | 280 |
Storage wheel | mm | 200 |
Total weight | kg | 101(easy to disassemble and assemble) |
Hydraulic power unit 600TM | 25 kW, 380V,50HZ, 200 bar, 30-80/min, 180kg | |
Hydraulic power unit 700TM | 30 kW, 380V-480V,50/60Hz,210bar,40-100 l/min, 120kg | |
