Products Description

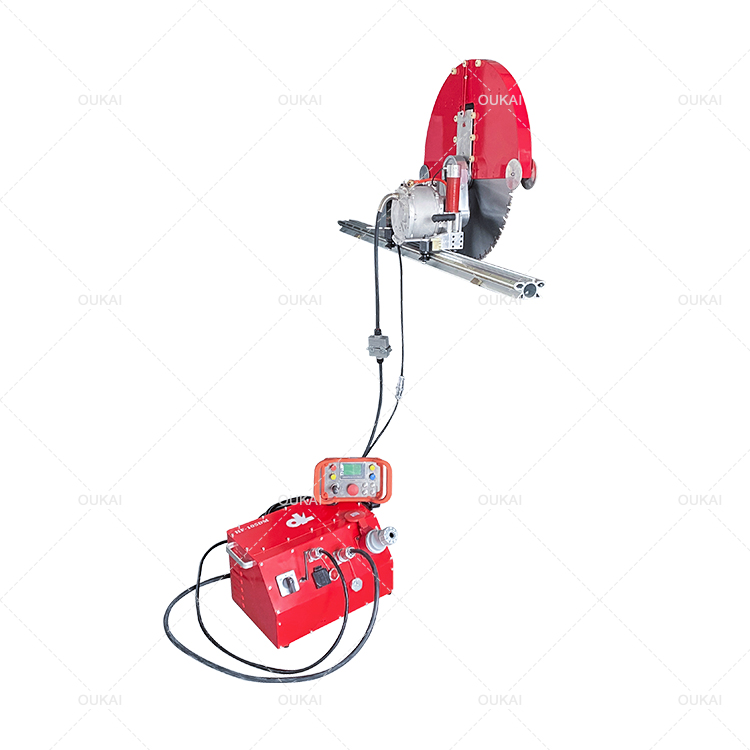

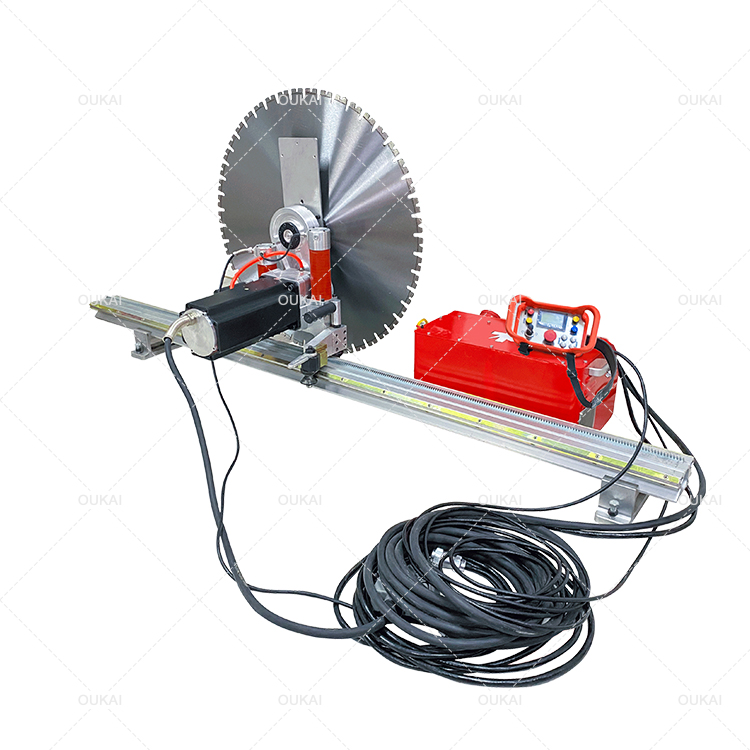

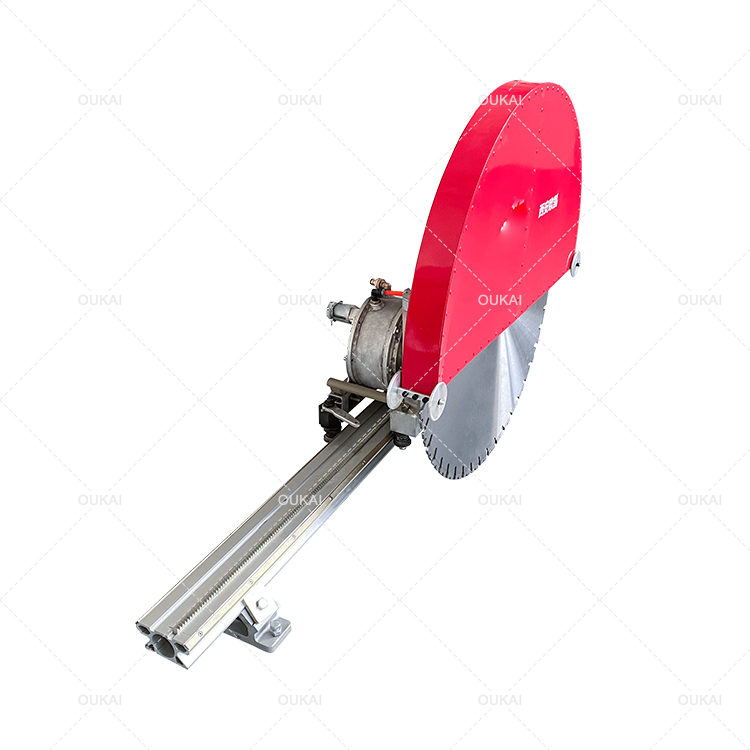

The model HF-105DM Electric wall saw are equipped with OUKAI's independently developed high-frequency electric motor, making them capable of sawing large openings in heavily reinforced concrete walls with a maximum sawing depth of 520mm from one side.
Features
User-friendly wireless remote control
Multiple cutting modes-incl.fully automated cutting
Optimized speed for each cutting application
Easy to transport and setup
Tags: wall saw Electric wall saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Electric wall saw
high frequency wall saw
Saw Blade
- Max.cutting depth : 520mm
- Max.saw blade : φ1200mm
- Saw blade fixing(flush cuts) : 6 countersunk head screws,110mm graduated circle.
Electric motor
- Water-cooled
- High-frequency motor
- Output : 17kW(other power options available 9kW/22kW)
Control unit
- Voltage : three-phase/380V~480V (singe-phase/220V~240V can be customized)
- Frequency : 50Hz/60Hz
- Weight : 18kg
- Wireless control : 1.5kg
Weight
- Wall saw 105DM excl. main motor : 21kg
- Electric main motor(17kW) : 18kg
Cutting
There are three cutting methods for choice
- Automatic cutting without manual intervention
Manual cutting
Semi-automatic
