Products Description

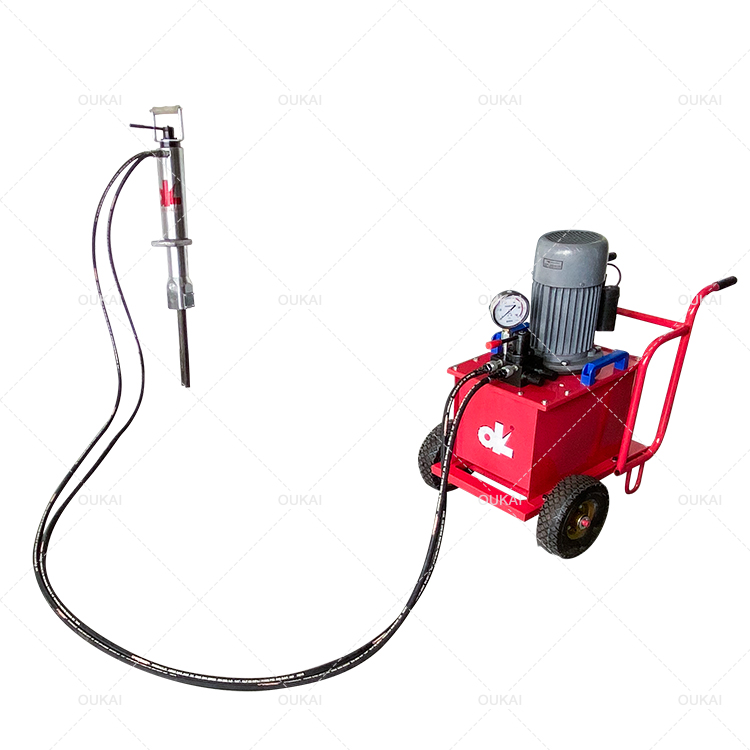

Hydraulic rock and concrete splitter
The hydraulic rock & concrete splitter are inserted into the holes and then expanded creating a force of hundreds of tonnes per burster head cracking away the concrete ready for removal. This technique also produces very little noise, vibration or dust.

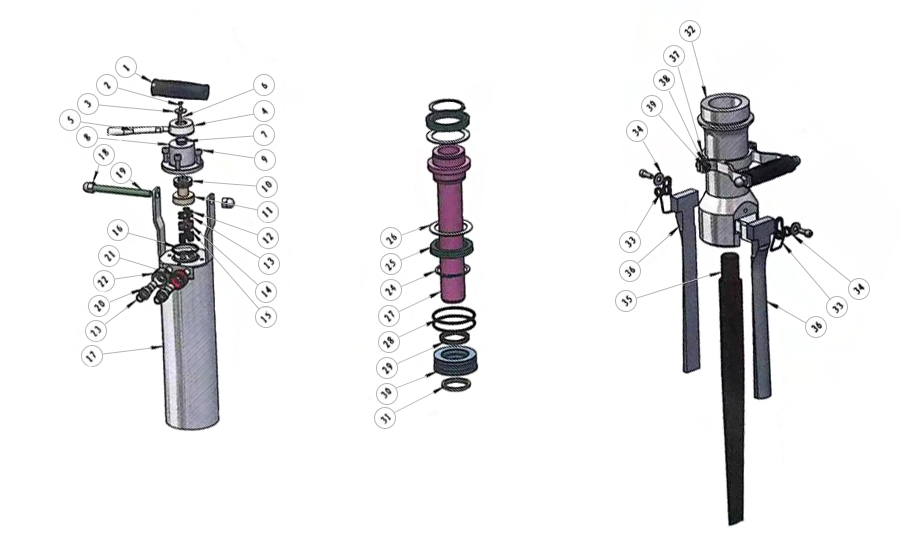

Splitter contents
Tags: Rock splitter Concrete splitter
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric

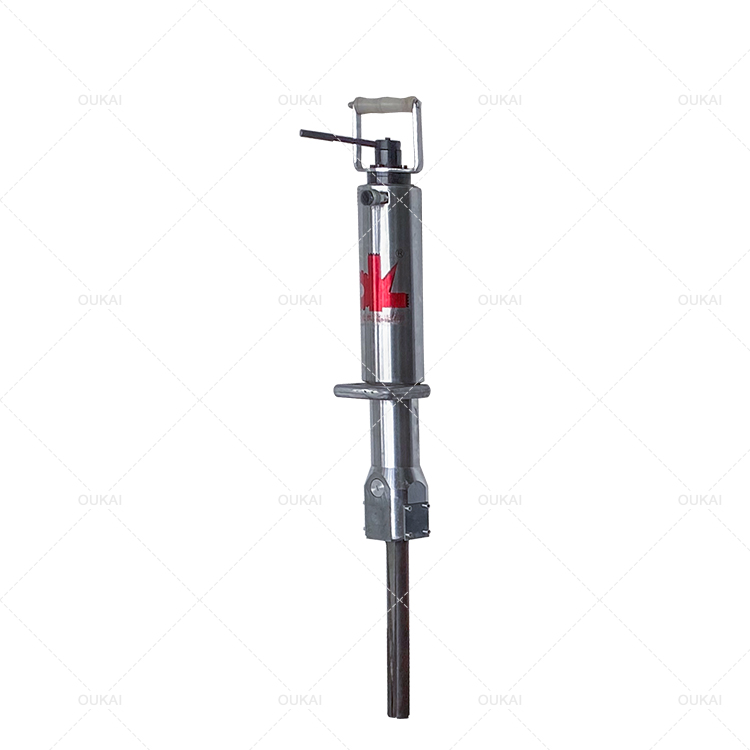

| Model | HD-25 | HD-35 |
| Core Diameter (mm) | φ42 | φ42 |
| Core Depth (mm) | ≥500 | ≥600 |
| Wedge Length (mm) | 250 | 350 |
| Crack (mm) | 10~40 | 10~40 |
| Splitting Time (s) | 5~12 | 5~12 |
| Splitting Force (T) | 300 | 400 |
| Weight (kg) | 38 | 45 |

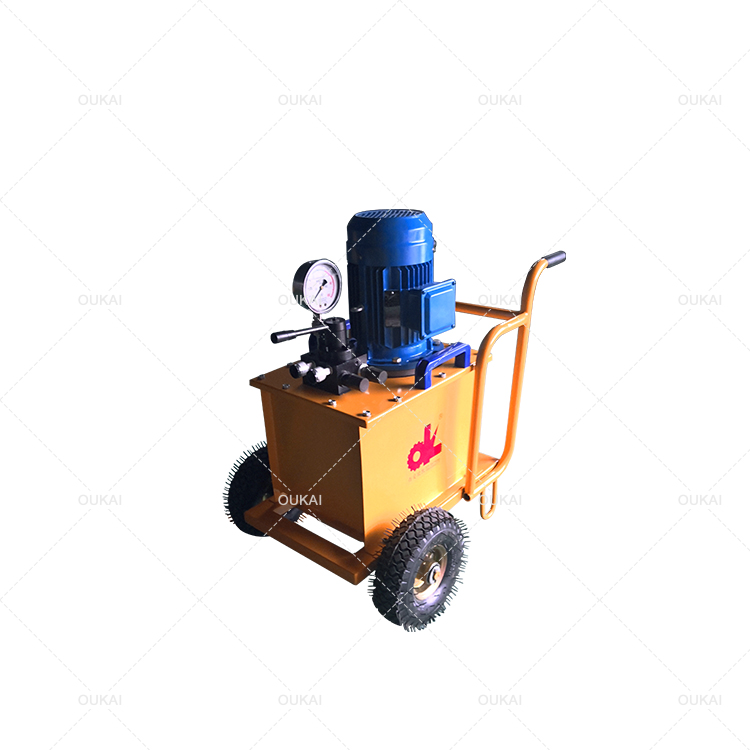

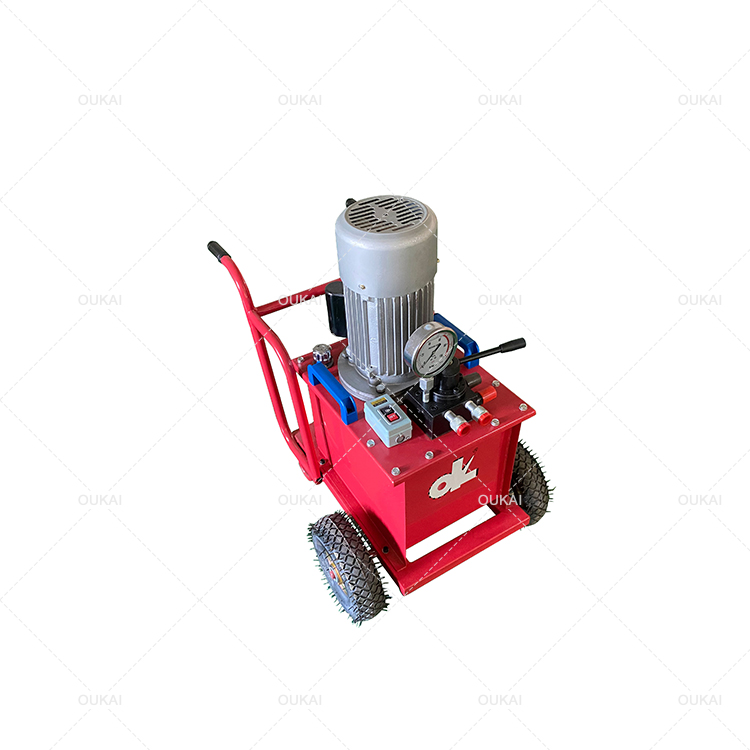

| Power Model | Weight | Tank Capacity | Engine Power | Working Pressure |
| Electric | 75kg | 40L | 3.0/4.0kW | 55-63Mpa |
| Diesel | 140kg | 70L | 7.5Hp | 55-63Mpa |
