Products Description

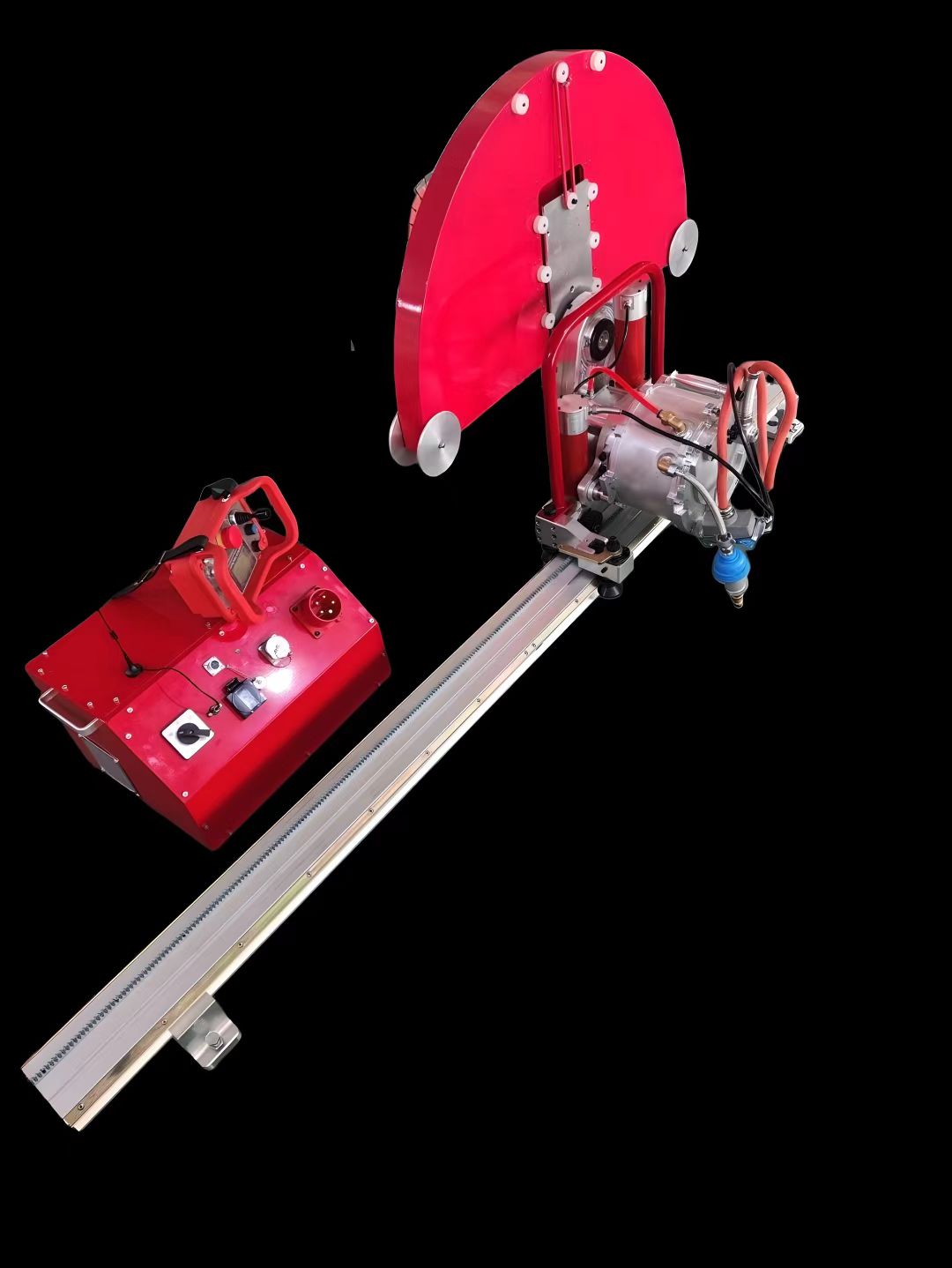

Wall saw developed for the toughest and most exacting applications With a cutting depth of up to 730mm, it is particularly suitable for major cutting tasks
Standard remote control enhances ease of use and safety in the workplace
Tags: Electric wall saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Model：HF-105DM
Max.Power: 30kW
Design
1. Max. cutting depth : 700mm
2. Max. saw blade : φ1600mm
3. Rotatable swivel arm : 360°
4. Water: Water connection on motor
5. Flush cutting: 6 countersunk head screws,110mm graduated circle.

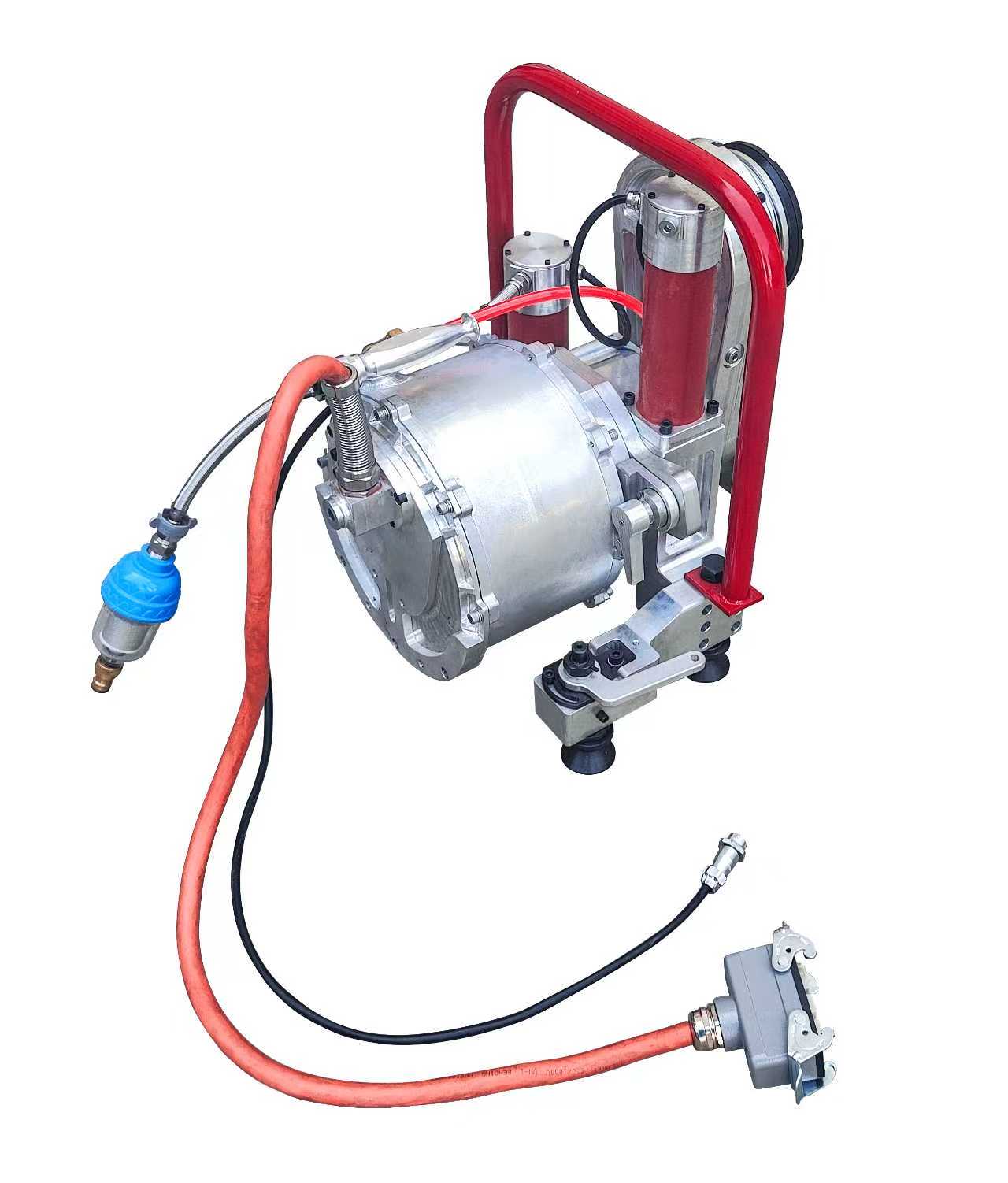

Blade drive motor
1. High-frequency, water-cooled, with quick-release device
2. Max.power : 30kW
Control unit
1. Voltage : three-phase 380V-420V (singe-phase is available)
2. Weight : 18.5kg
3. Wireless Remote Control : 1.5kg
Weight
1. Wall saw head: 30kg
2. Drive motor : 25kg
Cutting
There are mainly three ways for choice
1. Automatic cutting without manual intervention
2. Manual cutting
3.Speed hold（SH）cutting （Manually set a speed.And keep this speed auto-cut）
