Products Description

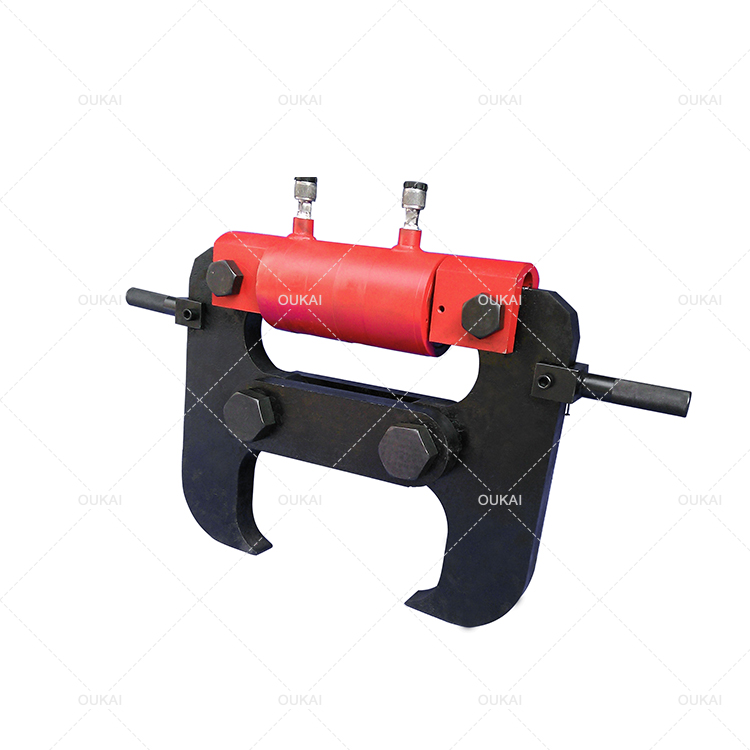

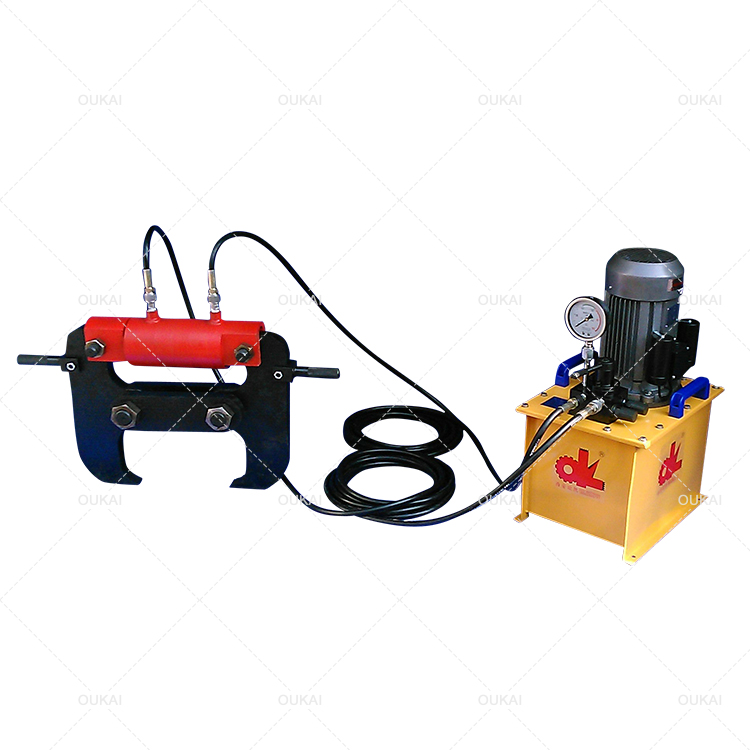

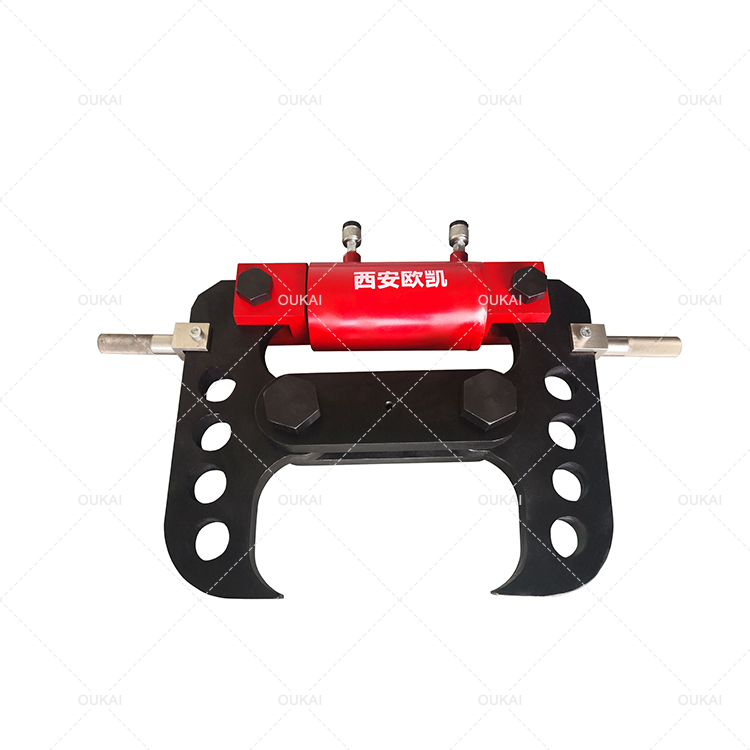

hand held concrete crusher
Do you need to break through a wall? Perhaps you need to remove a concrete floor or beam, but the space is too small for certain equipment? If so,hydraulic crusher can provide you with the most effective solution.
Demolish Demo
Tags:
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Hydraulic Crunching Specification
HD170 | HD250 | HD320 | HD420 | HD560 | |
Max. Crushing thickness(mm) | 170 | 250 | 320 | 420 | 560 |
Head Weigh(kg) | 75 | 75 | 85 | 100 | 160 |

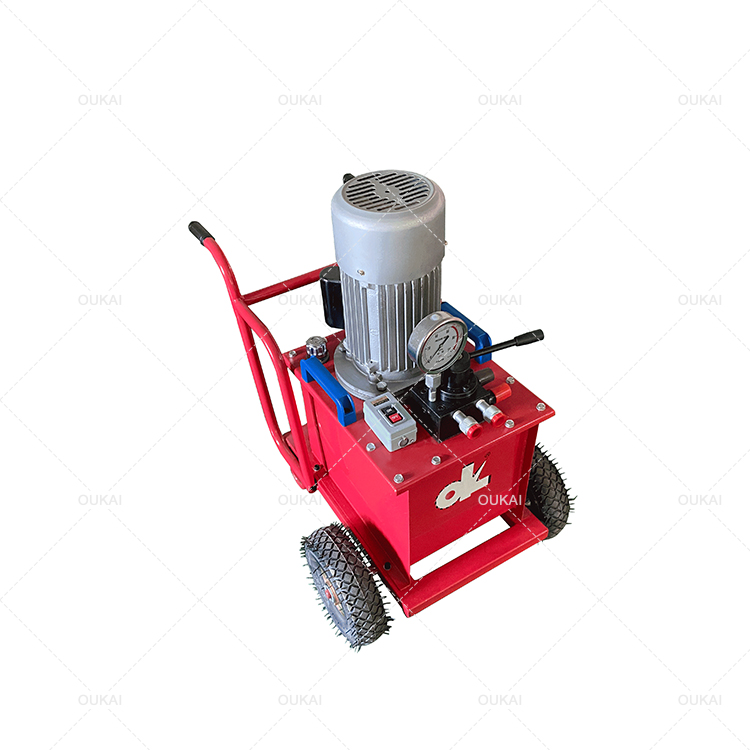

Power Pack Voltage(V) | 380 or 220 | 380 or 220 | 380 or 220 | 380 | 380 |
Power Pack Max.Pressure(Mpa) | 63 | 63 | 63 | 80 | 120 |
Power Pack Power(kw) | 2.2/3.0 | 2.2/3.0 | 3.0 | 3.0/4.0 | 4.0 |
Max Fuel Tank Volume(L) | 30 | 30 | 35 | 40 | 40 |
Power Pack Weight | 75/70 | 75/70 | 75 | 75/83 | 83 |
• The HD-420 crusher allows the demolition of concrete and reinforced concrete up to 40 cm thickness with strength and precision;
• Easy handling and operation without water.
• Without noise, vibrations and/or percussions;
• Very useful to crush remains of walls cutted with disc cropper and/or chain;
• Operated with a two person team of trained and experienced operatives.
• Can be operated by a 120 bar hydraulic pack
