Products Description

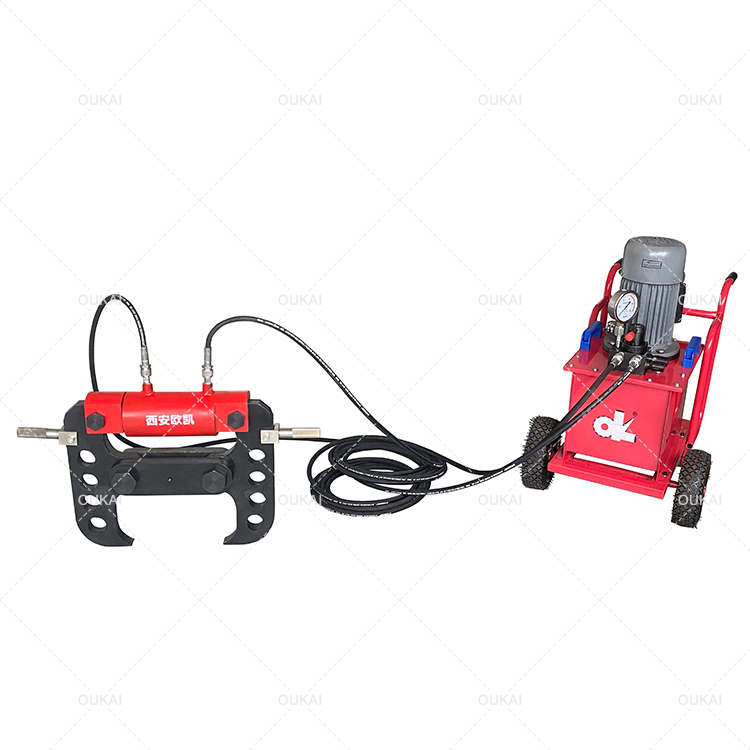

Hand Held Concrete Crusher
Do you need to break through a wall? Perhaps you need to remove a concrete floor or beam, but the space is too small for certain equipment? If so,hydraulic crusher can provide you with the most effective solution.
Crushing video
  |  |
 |  |
Tags: Concrete crusher hand held crusher hydraulic crusher
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Hydraulic Crunching Specification
HD170 | HD250 | HD320 | HD420 | HD560 | |
Max. Crushing thickness(mm) | 170 | 250 | 320 | 420 | 560 |
Head Weigh(kg) | 75 | 75 | 85 | 100 | 160 |
Power Pack Voltage(V) | 380 or 220 | 380 or 220 | 380 or 220 | 380 | 380 |
Power Pack Max.Pressure(Mpa) | 63 | 63 | 63 | 80 | 120 |
Power Pack Power(kw) | 2.2/3.0 | 2.2/3.0 | 3.0 | 3.0/4.0 | 4.0 |
Max Fuel Tank Volume(L) | 30 | 30 | 35 | 40 | 40 |
Power Pack Weight | 75/70 | 75/70 | 75 | 75/83 | 83 |
• The HD-420 crusher allows the demolition of concrete and reinforced concrete up to 40 cm thickness with strength and precision;
• Easy handling and operation without water.
• Without noise, vibrations and/or percussions;
• Very useful to crush remains of walls cutted with disc cropper and/or chain;
• Operated with a two person team of trained and experienced operatives.
• Especially used in environmentally sensitive areas, the Wall Crusher is vibration free, dust free and extremely silent
