Products Description
Our electric wall saws integrate high-frequency motors, reducing energy consumption by 30% compared to traditional models. The patented anti-vibration system ensures cleaner cuts in dense materials like reinforced concrete, minimizing operational fatigue

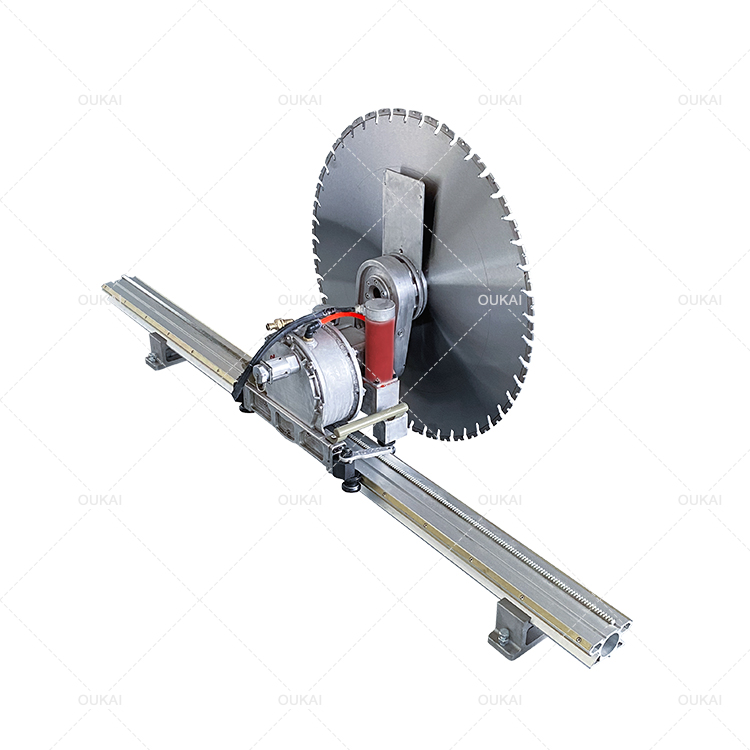

HF-105DM HF electric wall saw gives you increased possibilities for fast and efficient cutting in reinforced concrete, up to 610mm. thickness. Use this wall saw for all kinds of openings and sawing including stair, bevel and flush cutting. The user-friendly ergonomic design and ease of transport make your job fast and efficient. HF-105DM can be combined with HF103DM, transforming it into a perfect wire saw
Tags: Electric Wall Saw Cutting Concrete Demo
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
| Blade | |
| Maximum cutting depth | 620mm |
| Maximum blade capacity | 1400mm |
| Saw blade fixing(flush cuts)-6countersunk head screws | 110mm graduated circle |
| Maximum starter blade size | 800mm |
| Design | |
| Infinitely adjustable swivel arm rotates 360 degrees | |
| 2 carrying handles with locking function | |
| Motor | |
| Water cooled high frequency motor | |
| Output at 60 amps | 22 kW, 30 hp |
| Power Pack / Inverter Input | |
| Voltage | 380 volt |
| Frequency | 50Hz / 60Hz |
| Weight | |
| Including feed motors without main drive blade motor | 28kg |
| Electric main blade motor | 25kg |
| Minimum generator size requirement | 50 kW |
